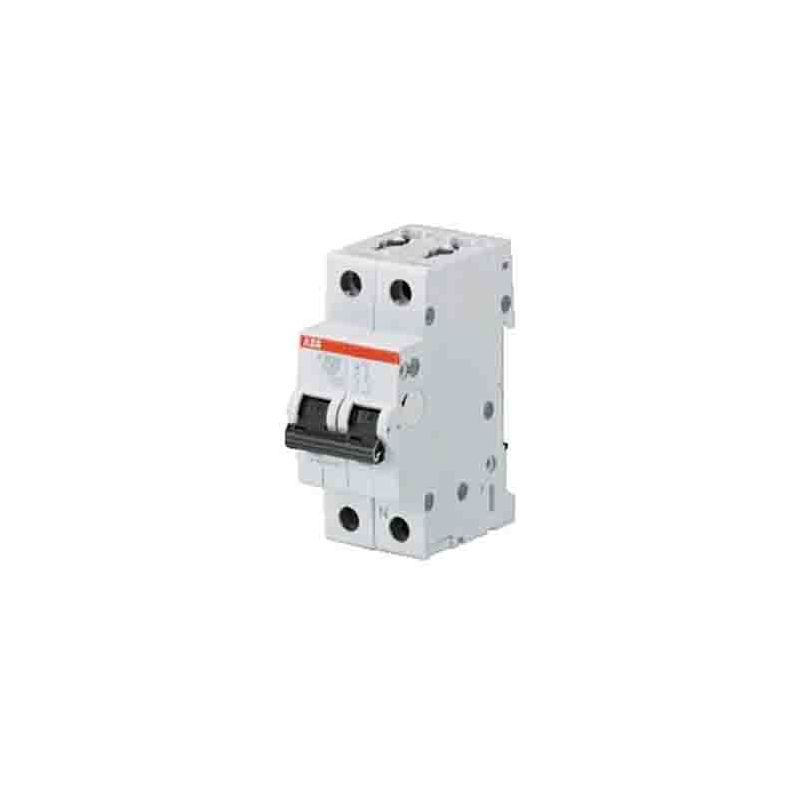

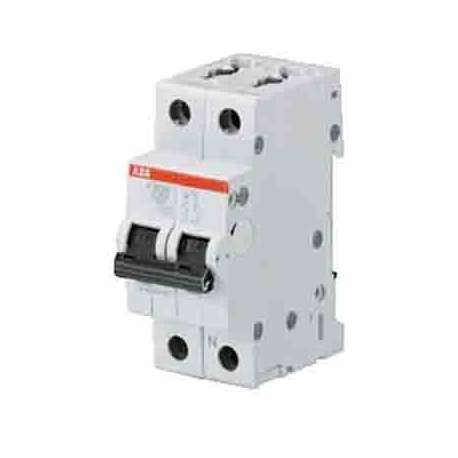

Micro-automatic 2P C40A 6.0kA Abb

Model

Condition New

S200 miniature circuit breakers,C40A, 6,0KA 230V L+N characteristics B and CFunction: protection and control of circuits against overloads and short circuits.Applications: domestic, commercial and industrial installations.Standards: IEC / EN 60898, IEC / EN 60947-2.With neutral NA interruption

More details

Power

Operating voltage

Add to wishlist

More info

Number of poles 2
Number of protected poles 1
Number of elements width 17.5mm 2
Protection degree (IP) IP20
Pollution degree 2
Short-circuit breaking EN 60898 6.0KA
Breaking capacity IEC60947-2 10KA
Current limitation category 3
Overvoltage category 3
Nominal voltage 230V
Nominal current 40A
Frequency 50HZ
Voltage type AC
Tripping characteristic C
