01.016.018.001
New

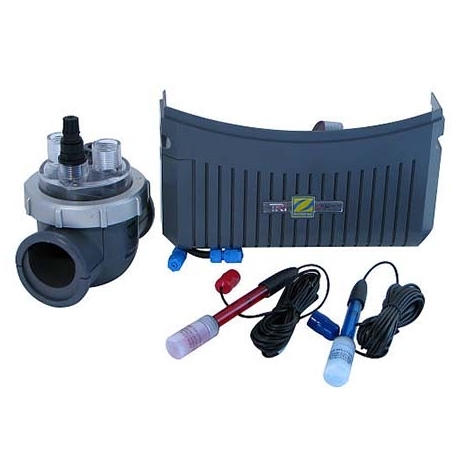

The Dual Link module provides automatic pH (acidic dose) regulation and regulation of chlorine production by the TRi Expert chlorinator. For balanced water and optimal disinfection.
Availability date:
Description:
User interface: Unit interface (4-line backlit LCD display)
Calibration: Semi-automatic at 1 point pH 7.5 & ACL 700 mV (buffers available)
Setting values: Factory settings: pH = 7.2 ACL = 4
Safety features: Pool volume selection, over-dosage safety device, chlorination type selection
Sensor location(s): Vertical, on POD (included)
Technical specifications
Sensor type (pH & ACL) Combined process sensor, dual connector and dual porosity, ABS body with ½" thread
Scale range 100 - 1000 mV
Measurement accuracy 10 mV
Sensor tolerance 0-60 ° C, water velocity ≤ 2 m / s
At maximum pressure (injection point) 1.5 bar
Peristaltic pump flow rate (pH) 1.8 L / hour
Unit dimensions (W x H x D) 28.5 x 15.5 x 7.5 cm
Power supply 50 Hz TBT (connected to chlorinator system)
General
Warranty: 2 years
Accessories included in the package:
pH sensor
ACL sensor
pH 7.5 buffer solution
Redox buffer solution700 mV
Piercing torque
Tube set
Optional accessories:
pH 7.5 buffer solution
ACL buffer solution 700 mV
Winter cover
Winter cover
3 m BNC extension cable
Anode grounding kit
Related products:
TRi Expert
