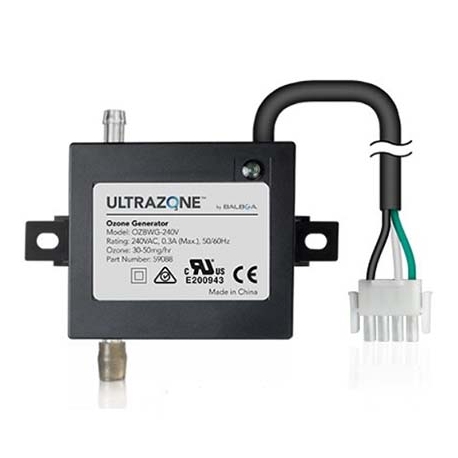

Ozone generator Ultrazone Balboa

Model 03.032.029.001

Condition New

Ultrazo3ne™ is a high-efficiency ozone generator designed for hot tubs. It utilizes advanced ozone technology to enhance water quality by reducing chemical usage and effectively sanitizing the water.

More details

Add to wishlist

More info

Ultrazone has been specifically designed and tested for spa and bath applications. It disinfects water by killing viruses and biological contaminants and reduces the use of chemical levels which means less discomfort from skin and eye irritation. This ozonizer is designed for all portable spas with a water volume of less than 3700 liters, but we mainly recommend it for spas with a capacity between 800 and 2000 liters. It comes with an installation guide, a hose (to connect the ozonizer to the ozone injector) and a control valve. The ozone injector is not part of this kit because it is intended to replace an existing ozonizer. You will then be able to use your old injector. If this is not the case, nozzles are available on our website (do not hesitate to contact us for more advice). An LED indicates ozone production. It also comes with a 4-pin AMP connector, but we have adapters for mini J&J plugs available on our website. Replacing an ozonator is a very quick job if the spa is already equipped with an ozone injector. It is much, much more difficult if there was no ozonator already installed, or if the ozonator was a type that does not use a separate injector.
Technical specifications
Ozone production: 30-50 mg/hour
Dimensions: 92 x 78 x 33 mm (box only)
Width x height: 111 x 100 mm (including connectors)
Current: 0.3 A
Dimensions of old model: 79 x 69 x 35 mm
Lifespan
Expect a lifespan of 8,000 hours (11 months) for 24-hour use, 16 months if the ozonator is used 2 x 8 hours per day and approximately 5 years if used 2 x 2 hours per day. The lifespan of the product depends on the environment and how it is used, especially the number of hours of continuous operation, but also on factors such as humidity, dust, etc.
Part Numbers
Balboa: 59088-KIT, OZBWG-240V, P78B138
Wellis: ACM1092
Sunrise Spas: R6068316
This model replaces P/N 54451 and the old "chip" version, P/N 54449, which Balboa no longer manufactures.
