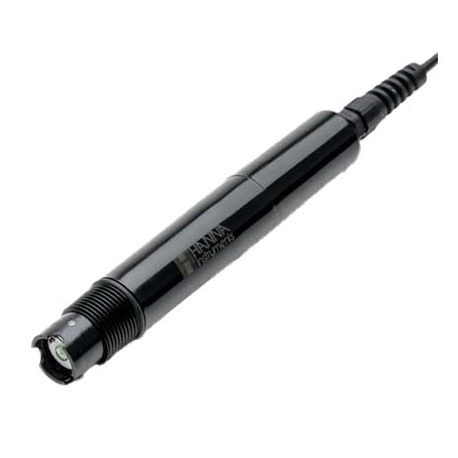

Electrode pH HI10063805 Hanna

Model 01.016.266.001

Condition New

The HI1000 series of digital pH probes are industrial sensors used for monitoring and control applications. These probes are available with a choice of ceramic or PTFE reference junction and glass types.

More details

615,04€

-20%

768,80€

Quantity

Add to wishlist

More info

All probes have a built-in pt100 temperature sensor and have a chemically resistant PVDF body that has ¾” NPT threads on the front end for insertion mounting.
These probes are compatible with the HI510 Universal Process Controller.
Available with 3 glass types including high and low temperature formulations.
Choice standard ceramic junction or chemically resistant PTFE junction.
Digital probe that transmits data by RS485 connection which is immune to electrical interferences associated with standard analog probes.
A Worldwide Leader in Electrode Manufacturing
Since the beginning of the 1990’s Hanna has been a leader in the research & development of pH electrode technology. The HI1000 series of digital pH probes represent the continual evolution of the technology. The HI1000 series perform all measurements within the probe and then transfer the data digitally to a process meter with a digital probe input.

The use of digital sensors allows for a process meter to be updated measuring a different parameter without changing controllers. This technology allows for a facility that has multiple control points to only have to maintain a single version of a controller.

The other advantage is that the digital transmission of measurement data is immune to electrical noise generated by motors, pumps, and humid environments. The digital signal can be transmitted over very long distances. This cannot be done with a standard analog probe unless it is amplified or a transmitter is used. The HI1000 of digital probes are available with cable lengths up to 50 meters.

All Hanna industrial digital pH electrodes are combination type, i.e. the reference half cell and the measurement half cell are assembled in the same body. All of the probes are made with a chemically resistant PVDF body and have a pt100 temperature sensor for automatic temperature compensation.
