New Reduced price!

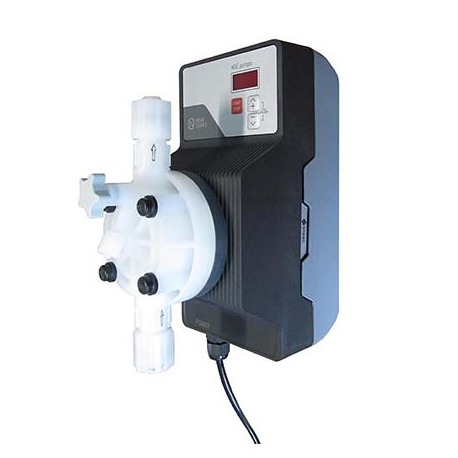

Dosing pump Nova NSE155 Steiel

Model 01.016.277.001

Condition New

ON/OFF pump, with no external command and input for level sensor Supplied with suction, delivery and purge hoses (standard in PVC / PE, on request in PTFE); injection valve and foot filter in PVDF with PTFE seals

More details

446,40€

-25%

595,20€

Quantity

Add to wishlist

More info

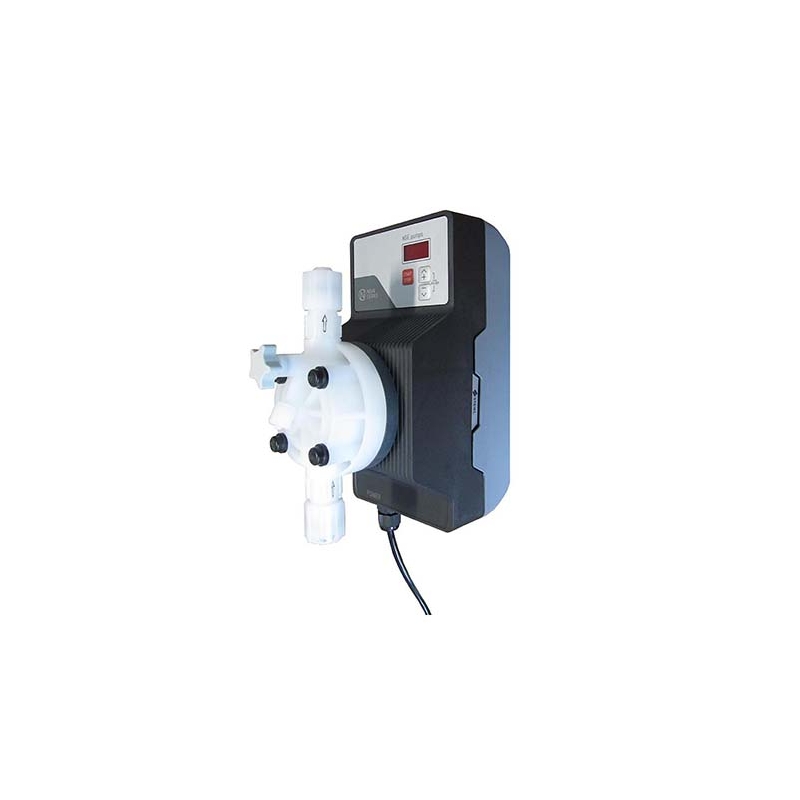

NOVA NSE155 is an electromagnetic dosing pump designed for wall installation.
It features no external command for its operations, but it is activated by the mains power supply, depending on the Start/Stop key on the front panel, and stopped by the level sensor input, in case of lack of liquid to be dosed.
It is equipped with a dosing chamber with anti-leakage system towards the magnet.
Available in different flow rate options, with PVDF (standard) or methacrylate dosing head, even with self-bleeding valve, and models for dosing liquids of medium viscosity.
To mount the pump on a tank, a special supporting bracket is available.
Supplied with installation kit, including hoses, injection valve and foot filter.
Features
Interface with red LED display
Standard power supply at 230 V~ (upon request, 115 V~), cable with plug
Dosing frequency settable from 1 to 180 strokes/minute
Hydraulic Characteristics
PVDF head; multi-layer membrane with PTFE coating on the side in contact with the liquid;
valves with PVDF body and ceramic ball; PTFE (FPM and EPDM) seals
Housing with V0-UL flame classification
Available options:
PVDF dosing head with 2-way self-bleeding valve
Valves with spring for the dosage of medium viscosity liquids
“Full PTFE” reinforced diaphragm
Valves with PTFE ball for use with aggressive products
Methacrylate dosing head, even 3-way self-bleeding version
