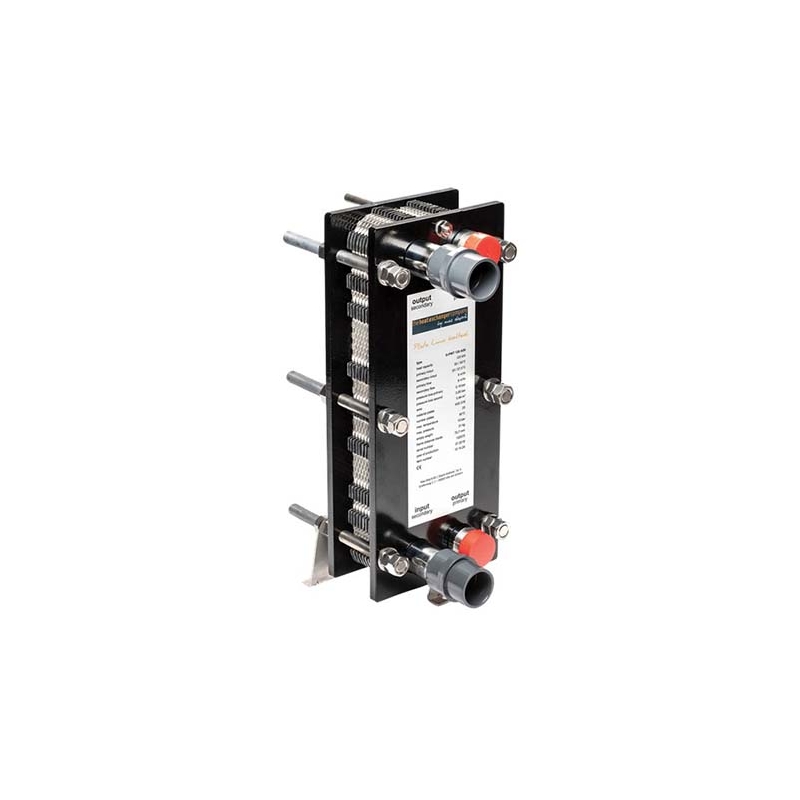

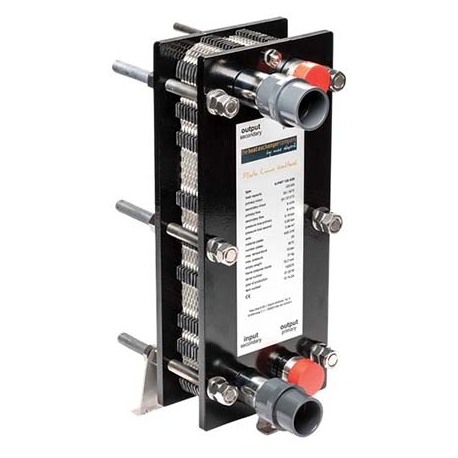

Plate exchanger titanium Max Dapra

Model

Condition New

Water/water plate heat exchanger made of titanium or stainless steel plates and sealed with EPDM rubber for temperature resistance ≤ 140°C. The exchanger has a steel body with a double coating of hot-dip paint. The pressure drop is calculated at 2.5m HV.

More details

Power

Add to wishlist

More info

Model Efficiency Flow Flow Connection Surface
70οC P/C D/C Changeover
X-PWT407 40kw 1.4 m3/h 1.4 m3/h 1 ¼ "x40x50 0.20 m2
X-PWT409 55kw 1.9 m3/h 1.8 m3/h 1 ¼ "x40x50 0.29 m2
X-PWT411 75kw 2.5 m3/h 2.4 m3/h 1 ¼ "x 40x50 0.37 m2
X-PWT415 100kw 3.2 m3/h 3.1 m3/h 1 ¼ "x 40x50 0.53 m2
X-PWT419 135kw 4.2 m3/h 4.3 m3/h 1 ¼ "x 40x50 0.70 m2
X-PWT423 170kw 5.4 m3/h 5.3 m3/h 1 ¼ "x 40x50 0.86 m2
X-PWT427 195kw 6.2 m3/h 6.0 m3/h 1 ¼ "x 40x50 1.00 m2
X-PWT431 234kw 7.4 m3/h 7.2 m3/h 1 ¼ "x 40x50 1.19 m2
X-PWT435 260kw 8.0 m3/h 8.0 m3/h 1 ¼ "x 40x50 1.35 m2
X-PWT439 300kw 9.4 m3/h 9.4 m3/h 1 ¼ "x 40x50 1.52 m2
