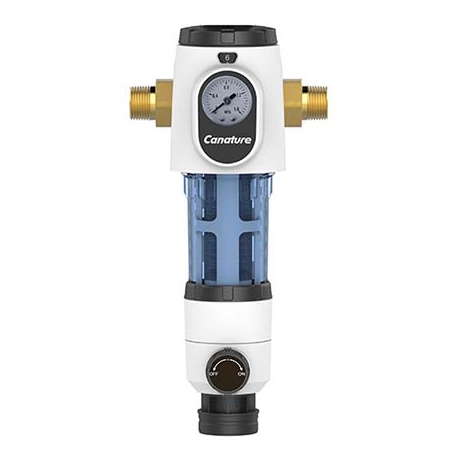

Main filter self cleaning CPF-4 1 Canature

Model

Condition New

Reliable self-cleaning central supply filter CPF-4 1'' Canature with 40 μm stainless steel mesh. With pressure gauge, easy installation and cleaning without tools. Ideal for protection against particles, sand and mud in any plumbing installation.

More details

168,44€

-25,00€

193,44€

Quantity

Connection

Add to wishlist

More info

Self-Cleaning Central Supply Filter CPF-4 1’’ Canature – 40 micron
The self-cleaning central supply filter CPF-4 1’’ Canature was designed to reliably protect the plumbing installation from particles, sand, soil and other suspended solids. It features a stainless steel screen with a filtration rating of 40 micron, ensuring high resistance and long-lasting performance.
It incorporates a pressure gauge for immediate pressure indication and operates with a practical self-cleaning system, which is easily activated by a simple rotation of the base, without tools and without interrupting the water supply.
The specially designed 360° rotating base allows installation in both horizontal and vertical pipes, offering maximum flexibility in placement.
Technical characteristics:
Connection thread: 1’’ Male
Flow rate: 4 m³/h
Screen material: Stainless steel
Filtration grade: 40 μm
Operating pressure: 0.1–1 MPa (1–10 bar)
Pressure indication: Built-in pressure gauge
Dimensions (L x W x H): 44.6 x 21.0 x 13.1 cm
Weight 2.10kg
Operating temperature 5 – 40℃
Advantages:
Durable construction
Quick and easy cleaning process
Flexible installation (horizontal & vertical)
Reliable protection for the entire hydraulic installation
