Φωτομέτρο pH,ελεύθερου χλωρίου, χλώριου,αλκαλικότητας,κυανουρικού οξέος

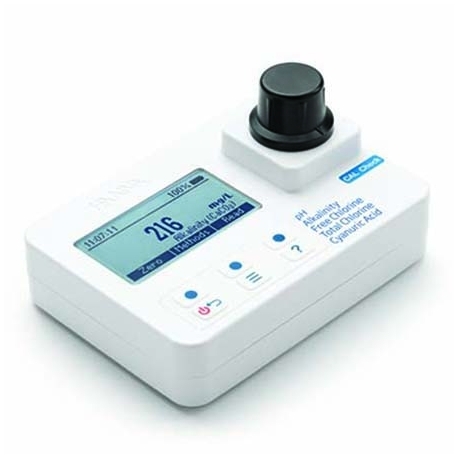

Photometer pH, Free Chlorine and Total Chlorine, Alkalinity, Cyanuric Acid Hanna

Model 01.015.107.001

Condition New

HI-97104 is an advanced portable photometer for the measurement of pH, Alkalinity, free chlorine & total chlorine, and Cyanuric Acid in water. This meter offers a superior optical system that utilises a reference detector and narrow band interference filters for extremely fast and repeatable measurements.

More details

474,30€

-25%

632,40€

Quantity

Add to wishlist

More info

The HI-97104 photometer’s internal reference system compensates for any drift due to power fluctuations or ambient temperature changes. With a fixed light source, measurements are fast and consistent between blank (zero) measurement and sample measurement.
High-efficiency light source: LED light sources offer superior performance compared to tungsten lamps. LEDs have a much higher luminous efficacy, providing more light while consuming less power. They also produce little heat, which could otherwise affect electronic stability.
High-quality filters:
Improved optical filters ensure greater wavelength accuracy and allow for a brighter, stronger signal. The end result is higher measurement stability and less wavelength error.
Greater Light Output:
A focusing lens collects all the light coming out of the cell, eliminating errors from imperfections and scratches that may be present in the glass. The use of the convex lens reduces the need for cell indexing.
CAL Check Function:
Hanna’s exclusive CAL Check function allows for performance verification and meter calibration using NIST traceable standards. Standard CAL Check vials have been developed to simulate a specific absorbance value at each wavelength to verify the accuracy of subsequent measurements.
Alkalinity Range 0 to 500 mg/L (as CaCO3)
Environment 0 to 50°C (32 to 122°F); relative humidity: 100% (IP67, floating case)
Cyanuric acid Range 0 to 80 mg/L (as CYA)
Chlorine Range (all ranges) 0.00 to 5.00 mg/L (as Cl2)
Chlorine Analysis 0.01 mg/L
pH Analysis 0.1 pH
Alkalinity Analysis 1 mg/L
Cyanuric Acid Analysis 1 mg/L
Battery Type/Lifetime AA 1.5V Battery (x3) /> 800 readings (without backlight)
LCD Display 128 x 64 pixels B/W with backlight
Dimensions 142.5 x 102.5 x 50.5 mm (5.6 x 4.0 x 2.0")
Weight 380 g (13.4 oz.) With batteries
Measurement Log Memory 50
Bandpass Filter Bandwidth 8 nm
pH Method Phenol Red Method Adaptation
EPA DPD 330.5 Chlorine Method Adaptation
Cyanuric Acid Method Turbidimetric Method Adaptation
Automatic Shutdown After 15 Minutes of Inactivity (30 Minutes Before READ Measurement)
Automatic Logging Type
Alkalinity Method Colorimetric Method
GLP Date, Time of Last Calibration
Ordering Information HI-97104 is supplied with cuvettes (2), caps (2), plastic inserts for cuvettes (2), 1.5V AA batteries (3), instruction manual and instrument quality certificate. Set: HI-97104C is supplied with CAL-Check standards, cuvettes (2), caps, (2), plastic inserts for cuvettes (2), scissors, cuvette cleaning cloth, 1.5V AA batteries (3), instruction manual and instrument quality certificate.
Measuring system Light source light emitting diode
Cell type round, diameter 24.6 mm (inner 22 mm)
Photometer / Colorimeter Light Detector silicone photocell with narrow band interference filter @ 525 nm
Chlorine accuracy ± 0.03 mg / L ± 3% of reading
pH accuracy ± 0.1 pH @ 25 ° C
Cyanuric acid accuracy ± 1 mg / L ± 15% of reading @ 25 ° C
Band filter wavelength accuracy ± 1.0 nm
Alkalinity accuracy ± 5 mg / L @ 25 ° C
